smart wall swith both neutral & single line

In the intelligent renovation of houses, one of the most popular smart products is the smart wall switch.However, ordinary wall switches are limited by live and neutral wires. Many times when buying a product, it is not confirmed whether it can be adapted to the wiring at home.In order to solve this problem, our company has launched a smart wall switch, which can be used with a neutral wire or a single live wire.

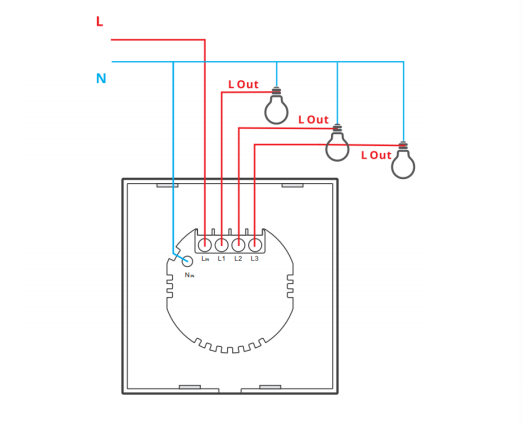

with N

The switch with N terminal supports the following wiring mode

Fire Wire connects L terminal.

Lamp wire connects L1, L2, L3 terminal.

Neutral wire connects N terminal.

Read More

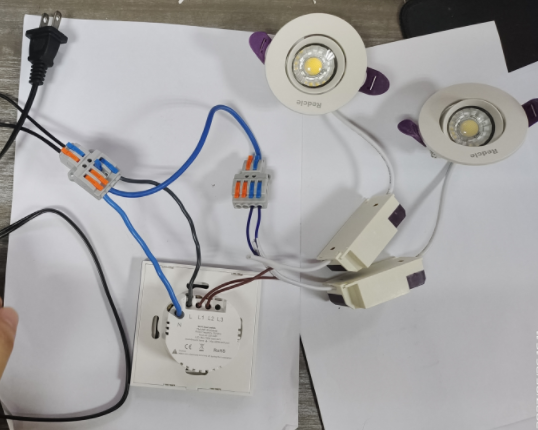

with N 2

The switch with N terminal supports the following wiring mode

Fire Wire connects L terminal.

Lamp wire connects L1, L2, L3 terminal.

Neutral wire connects N terminal.

Read More

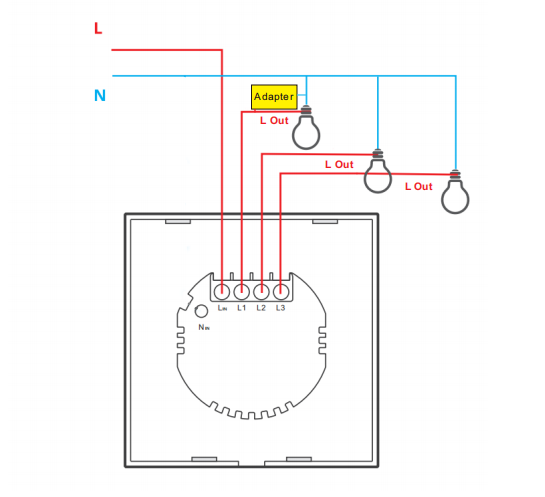

1685327754243

Switch supports single live wire working can be wired in the following way

Fire Wire connects L terminal.

Lamp wire connects L1, L2, L3 terminal.

1gang connects L1

2gang connects L2

3gang connects L3

Adapter connects first lamp wire and neutral wire.

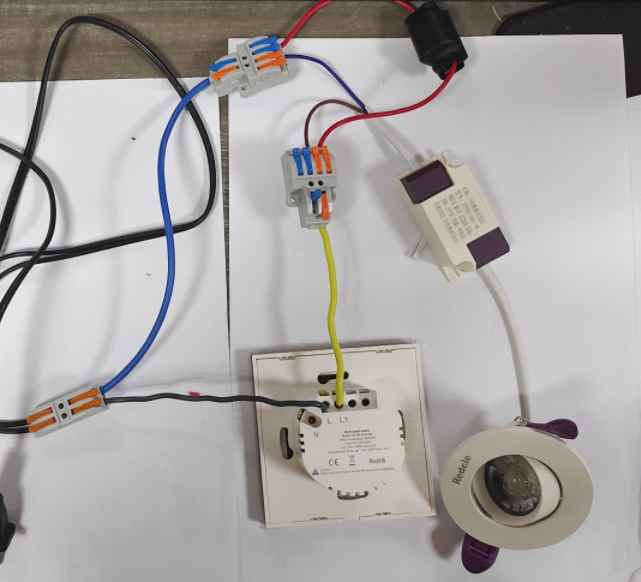

withou N

Switch supports single live wire working can be wired in the following way

Fire Wire connects L terminal.

Lamp wire connects L1, L2, L3 terminal.

1gang connects L1

2gang connects L2

3gang connects L3

Adapter connects first lamp wire and neutral wire.
